Home > Products > Belt Conveyors > Belt Conveyors > BN Flat Conveyors

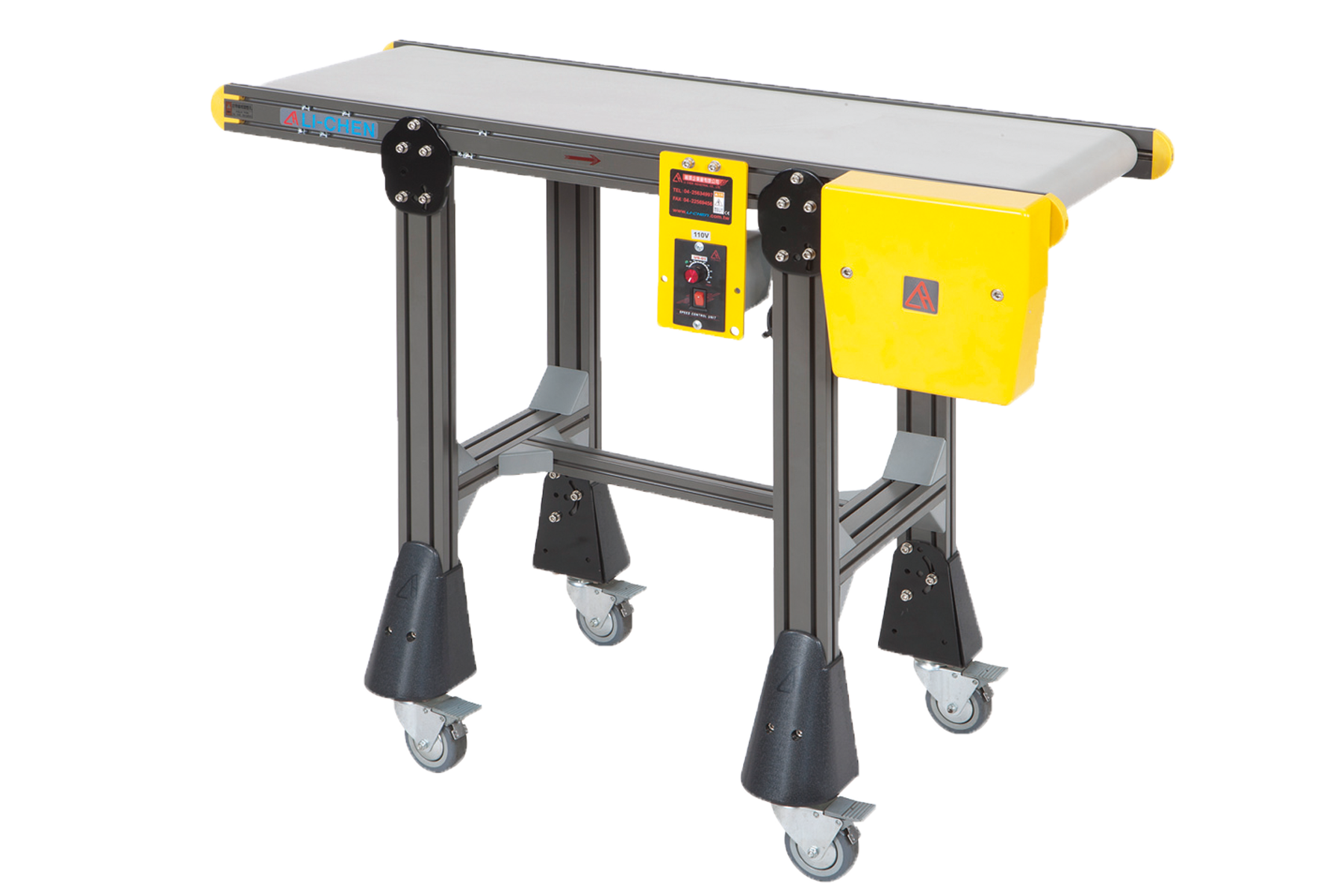

Flat Conveyors

MODEL : Model : BN
Inquiry
Favorite
VIDEO
Product Description

BN Series


   1. Aluminum Frame

   2. Belt

   3. Flat








Product Feature

•Good looking with safe features

•Easy to operate

•Three-point adjustable belt

•Easy to maintain: change the motors easily (saving time and efforts)

•Two covers on each side of belts to avoid anything getting into the belt.

•Accurately control the speed: Governor with monitor.

•Nickel-plating Screws for good anti-rusting quality.

•Good delivery for specification modular production.

•Applicable to the small object's transportation.

Product Specifications


○ Layout 麗晨BN型輸送機


 ○ Specifications

Secs and Features for BN Series
Unit : mm

 Belt Width (BW)
100
 200
300
 400
500
600







 Machine Width (MW)
170
 240
340
 440
540
640







 Working Width (PW)
70
 170
270
 370
470
 570





 Overall Width (TW)
200
 300
400
 500
600
 700







 Machine Length (L)
500
 1000
1500
 2000
2500
 3000







3500
 4000
4500
 5000
5500
 6000





 Machine Height (H)
 250 ~ 1500

 Frame Material
 15x60mm A60615-T6 High-Strength Aluminum covered by the anodizing surface and film 15UM.
 ( 95HB Hardness )

 Belt Spec.
 Material : PVC , PU (Thickness 1.3 ~ 5mm)

 Color : : Green, Grey, Black and White

 Pattern : Flat 、 Cross-Type 、 Diamond Type

 Working Temperature:PVC(-10°C~ +80°C) ; PU(-10°C~ +120°C)(Antistatic , wear-resisting ,  grease-proof)

 Loading Weight (Kg)
15 Kgs
24 kgs
36 kgs
48kg

 Consumption (W)
25W
40W
60W
90W

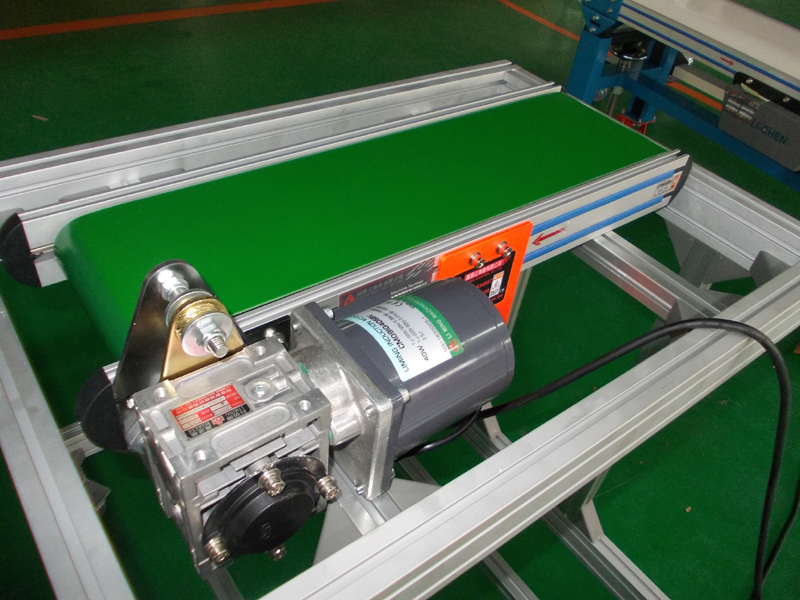

 Drive Locations
 Side Mounted Drive
 End Underslung Drive

 Speed (M/MIN)
 Standard 6 M/MIN (Fixed)
 Standard 3.6 M /MIN (Adjustable)

 1. 2 . 4 . 6 . 8 . M/MIN
 0~ 2 ; 1~4 ; 3~6 ; 5~17 M/MIN

 Power Supply
 AC 110V
 AC 220V (Single Phase)

 Control Speed Drive
 Intermittent (Fixed)
 Adjustable
 Intermittent (Adjustable)
 Continuous (Fiexed)

 Electric Wire
 Length : 3M

 Roller Dia. (mm)
 Main Shaft 52
 Secondary Shaft 52

 Support Type
 Aluminum Fixed Leg (30*60)
 With Leg Holder 1/2"  3" Brake Casters
 Trimming Strip
 Color : Grey and Blue

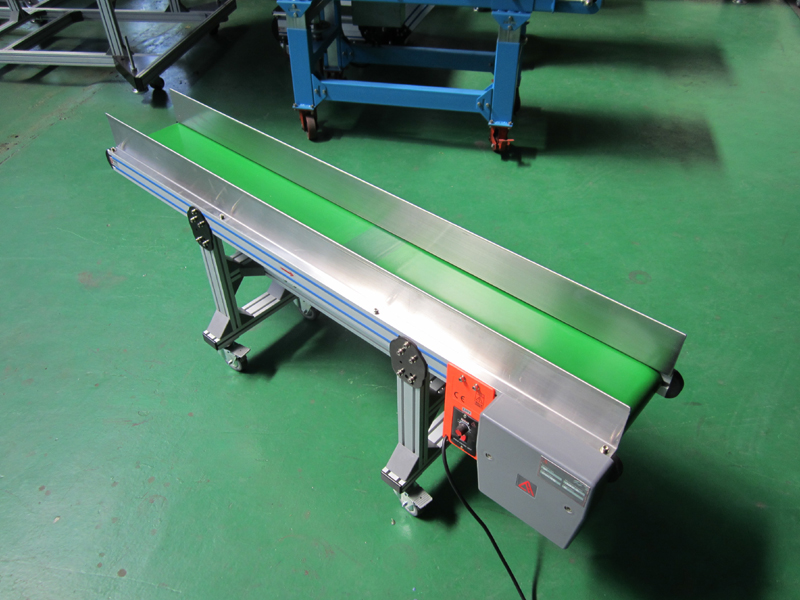

 Accessories
 Aluminum Side Plate Height:60
Belt Guard
 C Type Guard (Big)

 * Above are for reference only, specifications can be modified. *
