Incline Conveyors

MODEL : Model : BNH

Inquiry

Favorite

VIDEO

Product Description

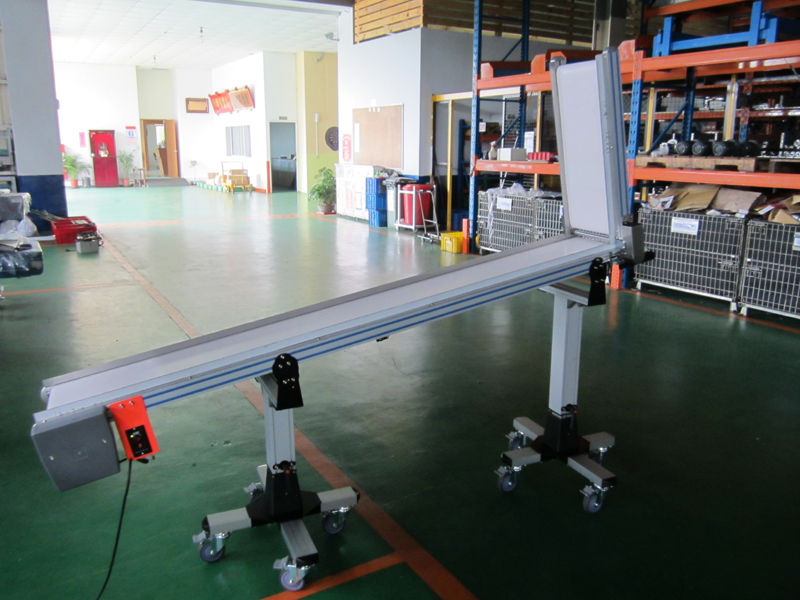

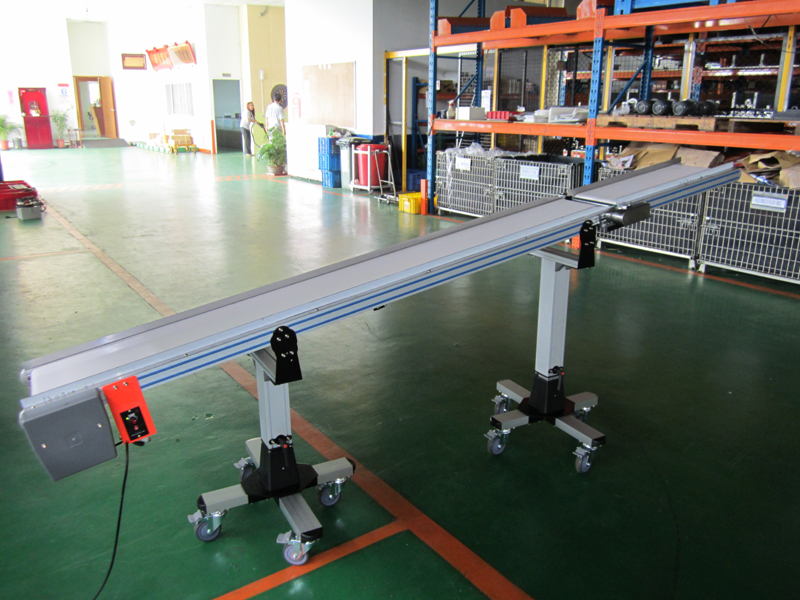

BNH Series

1. Aluminum Frame

2. Belt

3. Incline

Product Feature

•Good looking with safe features

•Easy to operate

•Three-point adjustable belt

•Easy to maintain: change the motors easily (saving time and efforts)

•Two covers on each side of belts to avoid anything getting into the belt.

•Accurately control the speed: Governor with monitor.

•Nickel-plating Screws for good anti-rusting quality.

•Good delivery for specification modular production.

•Applicable to the small object's transportation.

Product Specifications

○ Layout

○ Specifications

Specs and Features for BNH Series

Unit : mm

Belt Width (BW)

200

300

400

600

Machine Width (MW)

240

340

440

640

Working Width (PW)

170

270

370

470

350

Overall Width (TW)

300

400

500

600

700

Support Width(FW)

The width between support and machine's body is the same.

For example, the machine's body < 500 and FW = 500.

Machine Length (L)

1500

2000

2500

3000

3500

4000

4500

5000

Machine Height (H)

500~2000 (Adjustable Range : 30%)　

Frame Material

15x60mm A60615-T6 High-Strength Aluminum covered by the anodizing surface and film 15UM.

( 95HB Hardness )

Belt Spec.

Material : PVC , PU (Thickness 1.3 ~ 5mm)

Color : : Green, Grey, Black and White

Pattern : Flat 、 Cross-Type 、 Diamond Type

Working Temperature：PVC(-10°C~ +80°C) ； PU(-10°C~ +120°C)（Antistatic , wear-resisting , grease-proof）

Loading Weight (Kg)

15 Kgs

24 kgs

36 kgs

48kg

Consumption (W)

25W

40W

60W

90W

Drive Locations

Side Mounted Drive

End Underslung Drive

Speed (M/MIN)

Standard 6 M／MIN (Fixed)

Standard 3.6 M ／MIN (Adjustable)

1. 2 . 4 . 6 . 8 . M／MIN

0~ 2 ; 1~4 ; 3~6 ; 5~17 M／MIN

Power Supply

AC 110V

AC 220V (Single Phase)

Control Speed Drive

Intermittent (Fixed)

Adjustable

Intermittent (Adjustable)

Continuous (Fiexed)

Electric Wire

Length : 3M

Roller Dia. (mm)

Main Shaft 52

Secondary Shaft 52

Support Type

Aluminum Support with Single Ended Knob (Standard) or Rotary Adjuster

Trimming Strip

Color : Grey and Blue

Accessories

Aluminum Side Plate Height：60

Belt Guard

C Type Guard (Big)

　* Above are for reference only, specifications can be modified. *　　　　　　　　　
